Compact Flash

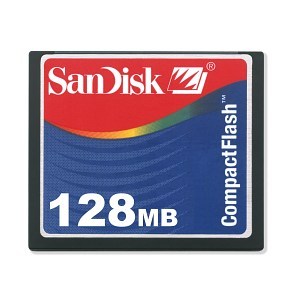

A Compact Flash card is an IC (Integrated Circuit) which is stored in a compact and rugged plastic enclosure. Compact Flash cards are designed to store data and to enable the transfer of data between devices equipped with Compact Flash slots.
Current Compact Flash capacities range up to 4GB.
Compact Flash Type I cards are 43mm long, 36mm wide, and 3.3mm thick.
Compact Flash Type II cards are 43mm long, 36mm wide, and 5mm thick.
The theoretical transfer speed of Compact Flash 2.0 is 16MB/sec.
The Compact Flash standard was introduced by SanDisk Corporation in 1994.
Compact Flash Plus (CF+)
Compact Flash Plus (CF+) extends Compact Flash to provide functionality such as micro hard drives, modems, Ethernet cards, 802.11 Wi-Fi cards, serial cards, Bluetooth cards, and more.
This makes Compact Flash the most versatile of the flash media formats.
For more information on Compact Flash, refer to the Compact Flash Specification.
|
|
- SD Card
A SD Card (Secure Digital Card) is an IC (Integrated Circuit) which is stored in a compact and rugged plastic enclosure. SD Cards are designed to store data and to enable the transfer of data between devices equipped with SD Card slots. Current SD Card capacities range up to 1GB. A SD Card is 32mm [...]...
- Memory Stick
A Memory Stick is an IC (Integrated Circuit) which is stored in a compact and rugged plastic enclosure. Memory Sticks are designed to store data and to enable the transfer of data between devices equipped with Memory Stick slots. Normally, Memory Sticks are used as storage media for a portable device, in a form that [...]...
- MicroSD Cards
MicroSD cards are the newest and smallest flash memory secure digital cards available, much smaller than both standard SD memory cards and even Mini SD memory cards. MicroSD cards were created by SanDisk Corporation and were introduced into use in 2006. These cards were created to be used with mobile phones; however other applications such [...]...
- NAND Drive
NAND drives are high-capacity, high-speed, solid-state flash memory drives. Thanks to new advances in technology, these drives have been chosen to become the latest drive preference for laptop computers (hopefully in the near future). When comparing the NAND to other types of flash memory, NAND drives have several noteworthy advantages. The term "NAND" refers to [...]...
