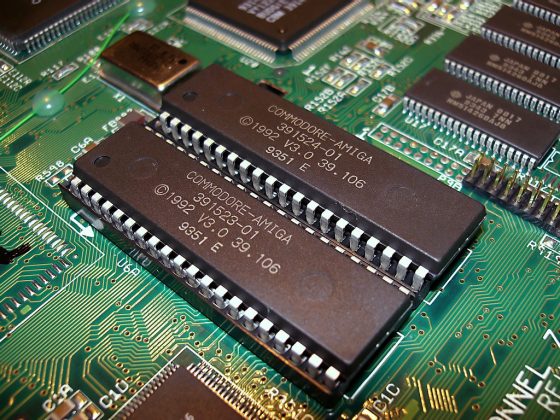

ROM (Read Only Memory)
Read-Only Memory or ROM is an integrated-circuit memory chip that contains configuration data. ROM is commonly called firmware because its programming is fully embedded into the ROM chip. As such, ROM is a hardware and software in one.
Because data is fully incorporated at the ROM chip's manufacture, data stored can neither be erased nor replaced. This means permanent and secure data storage. However, if a mistake is made in manufacture, a ROM chip becomes unusable. The most expensive stage of ROM manufacture, therefore, is creating the template. If a template is readily available, duplicating the ROM chip is very easy and affordable.
A ROM chip is also non volatile so data stored in it is not lost when power is turned off.
RAM versus ROM
Both RAM and ROM provide the user random access to stored data. However, RAM provides only short-term memory since data stored in RAM is lost when power is turned off. ROM, on the other hand, provides long-term storage since data is permanently etched into the ROM chip.
One other difference between the two is that RAM's data can frequently and speedily be altered and changed at will. ROM cannot be reconfigured at all.
ROM Chip Manufacture
The ROM chip has a matrix of columns and rows. The point of intersection between the column and the row is called a cell. Each cell will have a value of either 1 or 0. The manufacturer of the ROM chip has to determine each cell's value before the ROM manufacture ensues.
After the program has been designed, the ROM chip can now be made. At each cell where the value should be 1, a diode is placed to connect column to row. At each cell where the value should be 0, no diode is placed.
The ROM Chip's Diode
The diode is the cell's electronic check valve. Its main function in the ROM chip is to control and direct the flow of electric current in cells. Specifically, it transfers the electric current from column to row.
The diode has a minimum voltage requirement, what is commonly called the forward breakover, which needs to be surpassed before the diode will transfer the charge from the column to the row of the cell. The usual ROM diode forward breakover voltage is around 0.6 volts.
The ROM activates cells by sending through voltage that is more than the cells' diode forward breakover. The charge that is directed through the column gets passed on by the diode to the appropriate grounded row. Since charge is successfully transmitted from column to row, the cell where a diode is present has a value of 1.
In the ROM circuit, passing a charge through the column will not affect the cells whose values are supposed to be 0. In any cell, this charge cannot be passed from column to row if there's no diode to facilitate the transfer. Therefore, once a cell's value has been determined to be 0, it will permanently be 0.
|
|
Comments (5)
Leave a Reply
- PROM (Programmable Read Only Memory)
PROM stands for Programmable Read-Only Memory. It was invented by Wen Tsing Chow in 1956. Unlike a ROM chip, a PROM chip comes from the manufacturers devoid of any programming. Programming is done by the end user or the makers of electronic devices which require a permanent data storage device. Since it is cheaper than [...]...
- EPROM (Erasable Programmable Read Only Memory)
EPROM or Erasable Programmable Read Only Memory was invented by Engr. Dov Frohman. It is a ROM-type chip that can hold data from 10-20 years. It is different from PROM because it can be programmed more than once. An EPROM programming is erased only through exposure to ultra violet light. The EPROM is configured or [...]...

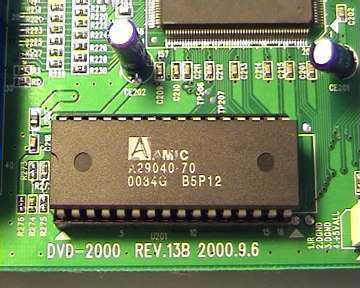

- EEPROM (Electrically Erasable Programmable Read-Only Memory)
EEPROM stands for Electrically Erasable Programmable Read-Only Memory. An EEPROM is like an EPROM chip since it can be written in or programmed more than once. Unlike the EPROM chip, however, an EEPROM chip need not be taken out of the computer or electronic device of which it is part when a new program or [...]...
- MRAM (Magnetoresistive Random-Access Memory)
MRAM (Magnetoresistive Random Access Memory) is being considered as a viable replacement for current DRAM technology. Its key difference to the latter is its use of magnetic fields to save memory bits which makes the memory "permanent." As such, MRAM technology allows for faster access and data security. Current RAM Technology Current RAM technology uses [...]...

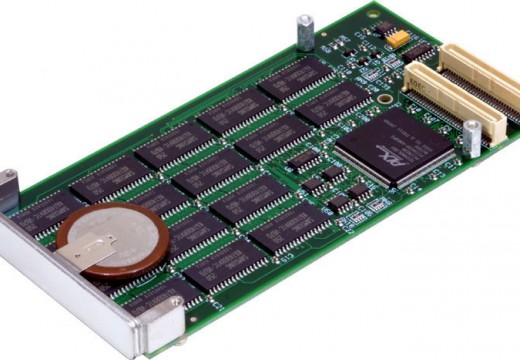

- NVRAM (Non-Volatile Random Access Memory)
