  • Binary Tree – Deleting a Node


    The possibilities which may arise during deleting a node from a binary tree are as follows:

    • Node is a terminal node: In this case, if the node is a left child of its parent, then the left pointer of its parent is set to NULL. Otherwise if the node is a right child of its parent, then the right pointer of its parent is set to NULL
    • Node has only one child: In this case, the appropriate pointer of its parent is set to child node.

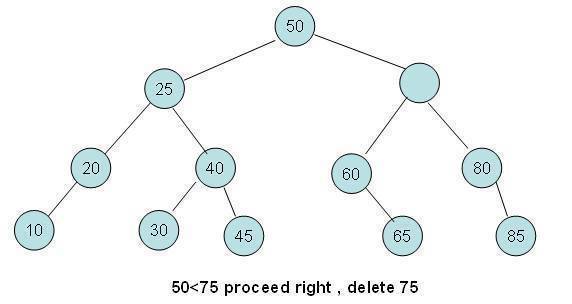

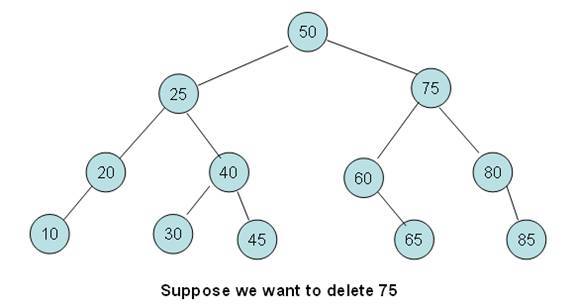

    • Node has two children: Predecessor replaces the node value, and then the predecessor of the node is deleted.

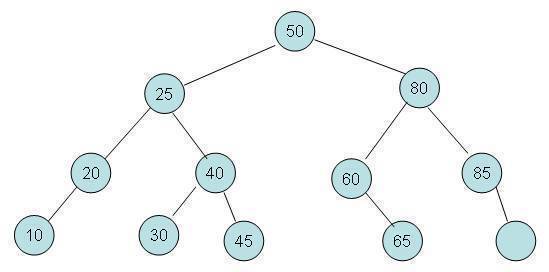

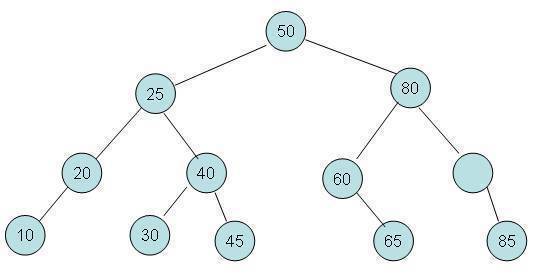

    Since the node has both, right and left child, if right sub-tree is opted find the smallest node. If left sub-tree is opted then find the largest node.

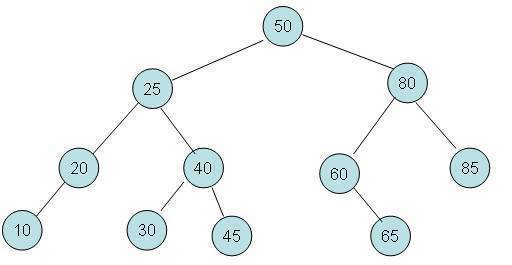

    Since node->right = node->left = NULL, delete the node and place NULL in the parent node.

    Node Removal Operation

    If the node to be removed is a leaf node, it can be deleted immediately. If the node has one child, the node can be deleted after its parent adjusts a link to bypass the deleted node.

    What if the node numbered 2 is deleted?

    t à right

    set t = t à right

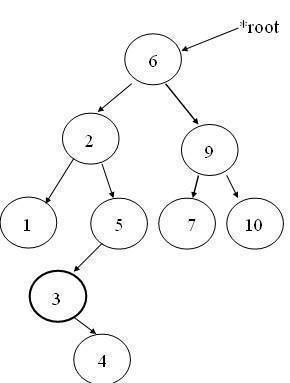

    If the node to be removed has two children, the general strategy is to replace the data of this node with the smallest data of the right sub-tree. Then the node with the smallest data is removed (this case is easy since this node cannot have two children).

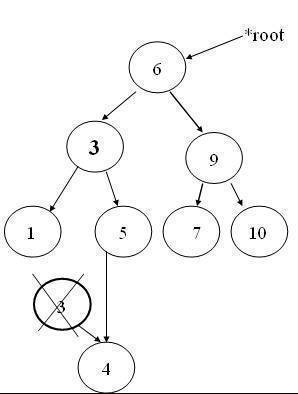

    Remove the numbered 2 again.

    C++ implementation for deleting a node

    void del(int item)
    {
        node *parent,*location;
        if(root==NULL)
        {
            cout<<"Tree empty");
            return;
        }
        find(item,&parent,&location);
        if(location==NULL)
        {
            cout<<"Item not present in tree";
            return;
        }
        if(location->lchild==NULL && location->rchild==NULL)
            case_a(parent,location);
        if(location->lchild!=NULL && location->rchild==NULL)
            case_b(parent,location);
        if(location->lchild==NULL && location->rchild!=NULL)
            case_b(parent,location);
        if(location->lchild!=NULL && location->rchild!=NULL)
            case_c(parent,location);
        free(location);
    }/*End of del()*/
    void find(int item,node **par,node **loc)
    {
        node *ptr,*ptrsave;
        if(root==NULL) /*tree empty*/
        {
            *loc=NULL;
            *par=NULL;
            return;
        }

        if(item==root->info) /*item is at root*/
        {
            *loc=root;
            *par=NULL;
            return;
        }

        /*Initialize ptr and ptrsave*/
        if(item<root->info)
            ptr=root->lchild;
        else
            ptr=root->rchild;
        ptrsave=root;

        while(ptr!=NULL)
        {
            if(item==ptr->info)
            {
                *loc=ptr;
                *par=ptrsave;
                return;
            }
            ptrsave=ptr;
            if(item<ptr->info)
                ptr=ptr->lchild;
            else
                ptr=ptr->rchild;
        }/*End of while */

        *loc=NULL; /*item not found*/
        *par=ptrsave;
    }/*End of find()*/
