    In the world of ice hockey and ice skating, there is nothing more important than maintenance of the ice. Failure to properly take care of an ice rink could result in broken bones, property damage, or the loss of a game. In order to efficiently care for an ice rink, ice rink owners spend large sums of money for a machine known as a Zamboni that is able to shave the ice, collect the ice shavings, wash the ice, and resurface the ice with a fresh layer of water. This article will discuss  what a Zamboni is, the history of the Zamboni, and the process in which a Zamboni treats the ice.

    What is a Zamboni

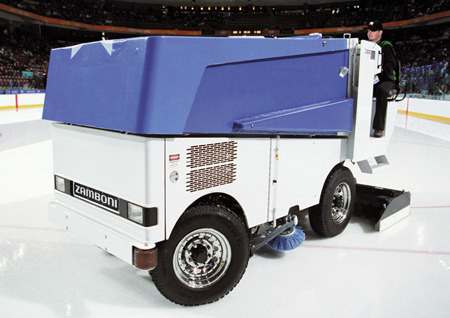

    A Zamboni is a large vehicle that is equipped with a long blade, an ice reservoir, a hose, a squeegee, a cloth applicator, a water heater, and many other mechanisms that allow the Zamboni to do its job. Zambonis are only able to reach speeds of 9 miles per hour, although most drivers do not even drive at half that speed. Though it is rather difficult to drive, a single Zamboni is able to clean an entire ice rink in under 8 minutes.

    History of the Zamboni
    The Zamboni was invented by Frank Zamboni in 1949. Before the invention of the Zamboni, workers had to manually scrape and wipe down the entire ice rink using squeegees, sponges, and buckets of water. This was a very time-consuming and back-breaking task as the ice rink had to be cleaned several times throughout the day. Zambonis today are able to quickly and efficiently clean an ice rink in a matter of minutes and are now considered to be mascots in any particular ice rink.How Do Zambonis Work

    Shaving
    The first thing a Zamboni does is shave the ice. This is done so that hockey players and figure skaters do not skate over large clumps of ice and hurt themselves. As the blades of hockey skates are very sharp, they often tear up the ice and create sharp and uneven scars on the ice rink. A Zamboni is able to quickly shave the ice using a 57-pound, 70-inch long, ½ inch thick blade that is sharp enough to slice through a phonebook.

    Collecting
    As the Zamboni shaves the ice, it also collects the ice shavings using a long, horizontal screw-like mechanism. The horizontal screw then pushes the ice shavings into a vertical screw that carries the ice shavings to a device known as a "slinger". The slinger is a paddle that rotates and throws the ice shavings into a large reservoir called a "snow tank" that sits at the front of the Zamboni.

    Washing
    Once the ice shavings have been collected by the Zamboni, the ice rink must be washed. For this task, the Zamboni has a hose that sprays luke-warm water onto the ice in front of a squeegee. The water in this process is simply used to loosen any residue that is on the ice. The squeegee scrapes up the residue such as coins, teeth, and dirt and holds it in a large tray that rests behind the squeegee in front of the Zamboni.

    Resurfacing
    Once the ice rink has been shaved and cleaned, it is time for the ice to be resurfaced in order to provide a clean, flat surface for hockey players and skaters to skate over. For this task, the Zamboni uses water that has been heated to 140 degrees Fahrenheit to spray the ice. As the Zamboni drives over the fresh water, coils on the bottom of the Zamboni freeze it almost instantly. As this entire process takes only a few minutes, hockey games and other events can be continued without hesitation.

    Got Something To Say:

    Your email address will not be published. Required fields are marked *

    One comment
    1. TK

      30 May, 2014 at 8:34 pm

      Not bad, but some clarification and additional info is necessary..The hardened steel blade is 77″ long. The width is 5″ when new and is sharpened multiple times, at a certain angle, as required. When the blade width reaches 3″, the blade is retired.

      The wash water is recirculated using an electric water pump / hose / gravity flow system. The wash water is filtered through a screen, which is housed in the wash water tank, which is located between the snow tank and the “cockpit” where the driver sits. The debris is collected in the removable screen .The wash water also removes snow from the ruts in the ice. The squeegees purpose is to help prevent excess wash water / slush from migrating away outside the treated area.

      The 140 – 160 degree flood water is applied by use of either a spray nozzle system, or a or a “towel” spreader cloth type of application. The flood water freezes with the help of the refrigeration coils, located not on the machine, but installed under the concrete floor of the entire ice surface.
